MARK'S HOUSE / TRUE ISOMETRIC VECTOR KIT 04
A flat isometric kit, assembled around your floor plan. Each structure and object is a separate SVG, ready to swap, recolour or reposition.
Open the interactive Habitat editor →
TOP / CUTAWAY
Upper footprint 9.5 × 5.7 m · Bed 4 3.2 × 4.0 m · ensuite · loft 3.4 × 3.4 m
MIDDLE / CUTAWAY
Upper footprint 9.5 × 5.7 m · Bed 3 3.2 × 3.4 m · study nook · two WIRs · Bed 2 3.4 × 3.4 m
GROUND / CUTAWAY
Estimated 25.7 m front-to-rear run, including inferred services · Living 4.4 × 3.8 m · dining 3.0 × 5.4 m · courtyard 4.5 × 4.5 m · Bed 1 3.6 × 3.9 m · garage 5.7 × 5.7 m
THE BUILDING BLOCKS

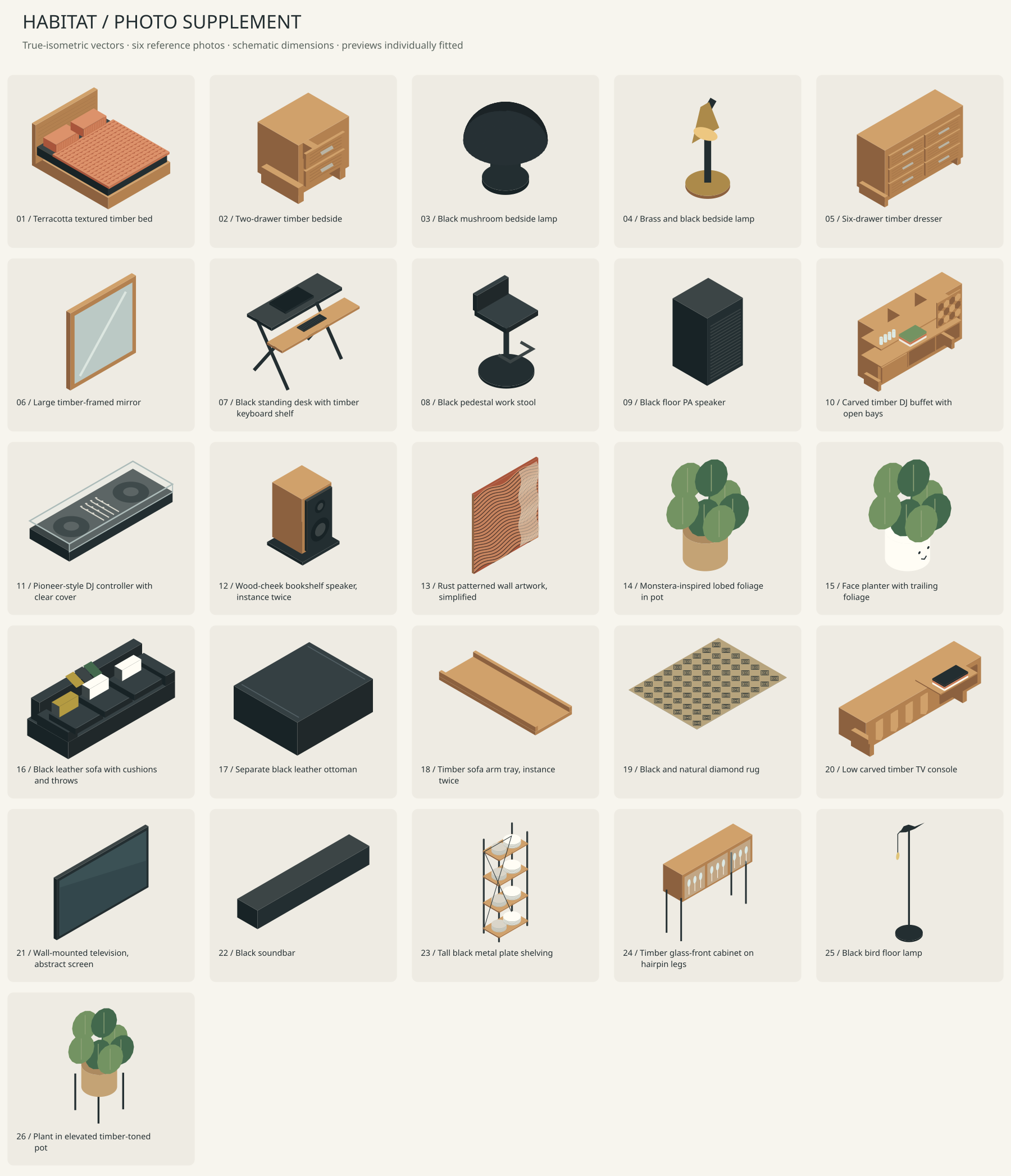

Transparent vector assets. The photo-based room additions are schematic, with approximate dimensions and positions. View the photo supplement preview ↗ The interface panels show mocked states only.
The south/front entrance is at the bottom left; the north/rear garage is at the top right. The narrow indoor corridor continues beside the open courtyard. Upper floors occupy only the front block. Stair origins are shared across all three structures.
Near-side walls are removed and interior partitions lowered so the rooms stay readable. Some furniture and fixture dimensions are inferred. This is an illustration trial, not surveyed CAD.
Edit the standalone SVGs, then rebuild their compositions with the included Python script. Positions, anchors, dimensions and mock states are recorded in the manifest. No Home Assistant connection, live entities or external services.
